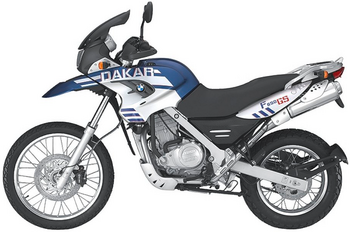

BMW F 650 GS DAKAR
F650DAK/04

Year of manufacture:

2004 to 2007

Specifications*:

Engine size:

652

Cylinders:

hp/kW:

50/ 37

Vehicle weight (kg):

192

Seat height (mm):

870

Valve clearance (intake):

KALT 0,10-0,15 MM

Valve clearance (exhaust):

KALT 0,25-0,30 MM

Engine idle speed:

1350 ± 50 U/MIN

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

1,9 (2,1) BAR

Tyre pressure (rear):

2,1 (2,3) BAR

Spark plug 1:

NGK DR8EB

Spark plug 2:

NGK DR8EIX

Electrode gap:

0,6 MM

Front/rear sprockets:

16/47 ZÄHNE

Chain/Final drive:

112 GLIEDER

Capacities*:

Fork oil per rod:

550 ML SAE 10W

Engine oil w/o filter:

2,1 L SAE 15W-50

Engine oil with filter:

2,3 L MIN. API SJ

Brake fluid:

DOT 4

Fuel:

17,3 LITER

Coolant:

1,3 LITER

Test reports and information*:

Spare parts and accessories for
BMW F 650 GS DAKAR

Products	Order no.	Price in €	Catalogue

CASTROL BRAKE FLUID

High performance for
motorcycles and scooters
Exceeds DOT3 and DOT4

Rating : 5 out of 5

10038221

from €8.40

p. 729
To the product
BRAKE BLEEDING SKREW

Bleed brake and clutch
systems quickly, cleanly
and safely!

Bike information:
brake front + back

Rating : 4.27 out of 5

10002856

€19.29

p. 708
To the product
CASTROL MOTOR OIL 15W-50

HC synthetic, 4T
API SJ, JASO MA-2
With Trizone Technology.

Rating : 3.66 out of 5

10038383

from €8.40

p. 728
To the product
MULTI DRY DEHUMIDIFIER

The moisture magnet
Prevents corrosion
For winter storage

Rating : 4.87 out of 5

10005049

instead of €10.92

€8.40

p. 461
To the product

PROCYCLE COOLANT

For year-round use
Ready-to-use mixture
Frost protection to -37°C

Rating : 5 out of 5

10004894

€5.87

p. 738
To the product
TRW BRAKE FLUID DOT 4

Brake fluid in DOT 4
Also for bikes with ABS
Contains: 250ml.

Rating : 5 out of 5

10038232

€4.19

p. 705
To the product
DID CHAINS ZVM-X TYPE

Individual D.I.D chains
in the most popular sizes
open, with rivet link.

60902100

€94.11

p. 0
To the product
CASTROL FORK OIL

Mineral oil based
For onroad and offroad
Anti-wear protection

Rating : 3.9 out of 5

10038217

€6.71

p. 729
To the product

SW-MOTECH HANDLEBAR RISER

Simply swap old for new
Greater biking comfort
Includes clamps

Rating : 4.65 out of 5

10021437

€37.77

p. 0
To the product
DOUBLE FILAMENT BULB

Double-filament bulb
6 V, 21/5 W, BAY15d or
12 V, 21/5 W, BAY15d

Bike information:
REAR LIGHT/STOP LIGHT

Rating : 5 out of 5

10031016

€1.67

p. 607
To the product
ENUMA MVXZ2 X-RING CHAINS

Quadra-X-Ring technology
Choice of 9 colours
OEM quality.

Rating : 5 out of 5

60903000

instead of €106.71

€84.87

p. 0
To the product
PROCYCLE 4-STR.ENGINE OIL

Semi-synthetic, 4T
API SM
JASO T 903:2006 MA2

Rating : 3.6 out of 5

10038570

from €8.40

p. 722
To the product

CASTROL COOLANT

Ready to use
For motorcycles/scooters
Market leader quality

Rating : 3.66 out of 5

10038227

€8.40

p. 729
To the product
Best in test

PHILIPS VISION MOTO H4

30% more light!
H4 12 V 60/55 W
P43t.

Rating : 5 out of 5

10031114

instead of €6.71

€5.03

p. 606
To the product
HEADLIGHT BULB H4

Halogen headlight bulb
H4 12 V 60/55 W
P43t

10031028

€4.19

p. 607
To the product
ENUMA X-RING CHAINS

Looks fantastic!
Metallic finish
Made in Japan

60903600

instead of €110.92

€88.23

p. 0
To the product

ADAPTER QUICK-LOCK

brand specific
adapter for
side carrier QUICK-LOCK

Bike information:
FOR 10023068 (T.B.FIT)

Rating : 4 out of 5

10025848

€16.76

p. 0
To the product
PROCYCLE BRAKE FLUID

Top braking performance
Long-term reliability
Protects braking system

Rating : 4.16 out of 5

10038240

€8.40

p. 738
To the product
HEADLIGHT BULB H4 12V 60/

Looks like a xenon lamp
H4 12 V 60/55 W
P43t

Rating : 3.6 out of 5

10031060

€8.40

p. 607
To the product
HEADLIGHT BULB H4 12V 60/

50% more light!
H4 12 V 60/55 W
P43t

Rating : 2.83 out of 5

10031064

€8.40

p. 607
To the product

SMALL GLOBE BULB

Small globe bulb
12 V, 10 W, BA15s

Bike information:
indicator bulb

10031009

€1.67

p. 607
To the product
QUICK-LOCK GPS-MOUNT FOR

vibration-dampened,quick-
release sat nav holder f.
crossbar-mounting 10-12mm

Rating : 4.66 out of 5

10004506

€50.38

p. 0
To the product
PROCYCLE RADIATOR ANTI

For liquid-cooled engines
Top all-year protection
Nitrite- & phosphate-free

Rating : 4.66 out of 5

10004869

€5.03

p. 738
To the product
SW-MOTECH HANDLEBAR RISER

15 mm to
50 mm rise is possible.
Improved riding position.

Rating : 1 out of 5

10020170

€41.97

p. 540
To the product

DELO GEL BATTERY

Gel technology.
A powerful alternative!
Plus EUR7.50 deposit

Rating : 2.16 out of 5

10036170

€84.03

p. 0
To the product
DELO STANDARD BATTERY

Conventional batteries in
OEM quality!
Ad. Euro 7.50 refund!

Rating : 1.91 out of 5

10036300

€46.21

p. 0
To the product
JMT LITHIUM ION BATTERY

Long life
Lightweight
plus EUR7.50 deposit.

Rating : 4 out of 5

10036930

€113.36

p. 0
To the product
SAITO STANDARD BATTERY

Conventional batteries in
top brand quality
Ad. Euro 7.50 refund!

Rating : 1.81 out of 5

10036450

€29.40

p. 0
To the product

BREMBO BRAKE-DISCS

OEM brake discs
with type approval
Fixed brake discs

Bike information:
REAR

Rating : 3.5 out of 5

10043400

€84.03

p. 0
To the product
TRW BRAKE DISCS REAR

Brake discs from the
Supersport World Cham-
pionship, type approved

Rating : 5 out of 5

10043612

instead of €67.22

€53.77

p. 0
To the product
Best in test

TRW BRAKE-DISC FRONT

Brake discs from the
Supersport World Cham-
pionship, type approved

Rating : 4.06 out of 5

10043600

instead of €100.83

€80.66

p. 0
To the product
TRW BRAKE-DISCS *RACING

TRW/LUCAS *RACING* front
brake disc. The finest of
high-tech - type approved

Rating : 4 out of 5

10043755

instead of €100.83

€80.66

p. 0
To the product

BREMBO BRAKE-PADS SINTER

High-performance sintered
brake pads from the world
leader type approved

Bike information:
FRONT; REAR

Rating : 4.18 out of 5

10047600

€31.92

p. 0
To the product
BREMBO BRAKEPADS ORGANIC

High-performance organic
brake pads from the world
leader type approved

Bike information:
REAR; FRONT

Rating : 4.54 out of 5

10047650

from €23.52

p. 0
To the product
Best in test

TRW BRAKE-PADS SINTER

Sintered metal pads
Test winners from Lucas
the major German brand

Bike information:
FRONT; REAR

Rating : 3.72 out of 5

10044701

€29.40

p. 0
To the product
Best in test

TRW BRAKEPADS ORGANIC

Organic brake pads from
Germany's major equip-
ment supplier TRW/Lucas

Bike information:
FRONT; REAR

Rating : 4.08 out of 5

10044100

€25.20

p. 0
To the product

DID CHAIN-KIT

CHAIN+PINION+SPROCKET
We sells the original DID
kit.

Rating : 3.95 out of 5

10048000

€100.83

p. 0
To the product
ENUMA MVXZ2 CHAIN KIT

Quadra-X-Ring technology
OEM quality
Made in Japan!

Rating : 5 out of 5

60904000

instead of €142.85

€114.28

p. 0
To the product
FORK SEAL SET SAITO

In various sizes
Made in EU
OEM quality

Rating : 2.83 out of 5

10042180

€10.92

p. 717
To the product
CHAMPION AIRFILTER

Hightech filters from
one of the largest
brand manufacturers

Rating : 4.35 out of 5

10052000

€8.40

p. 0
To the product

CHAMPION OIL FILTER

CHAMPION quality oil
filters from one of the
top brand manufacturers

Rating : 4.14 out of 5

100506

€5.87

p. 0
To the product
SPARK PLUG NGK

Top-quality spark plugs
OEM for most of the
big-name manufacturers

Bike information:
with single ignition; with Twin Spark

Rating : 3.98 out of 5

10035000

from €4.19

p. 0
To the product
SPARK PLUG NGK IRIDIUM

High-tech spark plugs
Double the service life
Reduced fuel consumption

Rating : 4.21 out of 5

10035100

instead of €15.01

€12.60

p. 0
To the product
BOOK:HAYNES REPARATURANL.

For all popular models
Illustrated with photos
In German

Rating : 4.56 out of 5

10052290

€27.94

p. 0
To the product

Best in test

SW-MOTECH HAND GUARDS

Not only an eye candy
but also give
optimal hand protection

Rating : 3.6 out of 5

10021000

€121.81

p. 0
To the product
SW-MOTECH HANDGUARDS

Extravagant, futuristic
hand guards for
effective protection.

Rating : 4.13 out of 5

10021504

€121.81

p. 0
To the product
Best in test

HEPCO&BECKER MAIN STAND

Sturdy, stable and
easy to use!
Centre stand from H&B!

Rating : 3.75 out of 5

60599200

€189.91

p. 0
To the product
Best in test

SW-MOTECH MAIN STAND

Well engineered
incl. type approval

Rating : 4.02 out of 5

10046700

€159.62

p. 0
To the product
