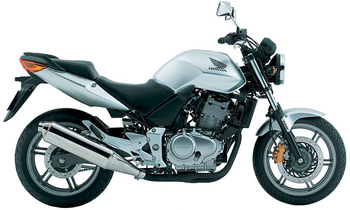

HONDA CBF 500
PC39

Year of manufacture:: 2004 to 2007

Print
Save in "My bike" Delete from "My Bike"

Technical data and liquid capacities

Specifications*:

Engine size:: 499
Cylinders:: 2
hp/kW:: 57/ 42
Vehicle weight (kg):: 202
Seat height (mm):: 770
Valve clearance (intake):: KALT 0,16 ± 0,02MM
Valve clearance (exhaust):: KALT 0,25 ± 0,02MM
Engine idle speed:: 1300 ± 100 U/MIN
Tyre pressure (front):: 2,5 BAR
Tyre pressure (rear):: 2,9 BAR
Spark plug 1:: NGK CR8EH-9S
Spark plug 2:: -
Electrode gap:: 0,9 MM
Fork tube diam.:: 41 MM TELEGABEL
Front/rear sprockets:: 15/41 ZÄHNE
Chain/Final drive:: 116 GLIEDER

Capacities*:

Fork oil per rod:: 455 ± 2,5ML 10W
Engine oil w/o filter:: 3,1 L SAE 10W-30
Engine oil with filter:: 3,5 L API SE-SG
Brake fluid:: DOT 4
Fuel:: 19,0 LITER
Coolant:: 2,0 LITER
