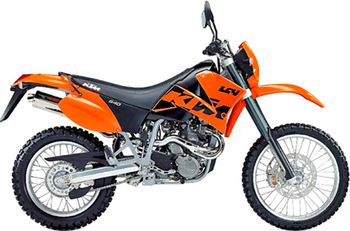

KTM 640 LC4 ENDURO
640LC4ENDU

Year of manufacture:

2003 to

Specifications*:

Engine size:

625

Cylinders:

hp/kW:

54/ 40

Vehicle weight (kg):

145

Seat height (mm):

940

Valve clearance (intake):

KALT 0,12-0,15 MM

Valve clearance (exhaust):

KALT 0,12-0,15 MM

Carburettor air screw:

2,25 AUSDREHUNGEN

Tyre pressure (front):

1,8 (2,0) BAR

Tyre pressure (rear):

2,0 (2,2) BAR

Spark plug 1:

NGK DCPR8E

Spark plug 2:

NGK DCPR8EIX

Electrode gap:

0,6 MM

Fork tube diam.:

43 MM

Front/rear sprockets:

16/42 ZÄHNE

Chain/Final drive:

5/8 X 1/4" X-RING

Capacities*:

Fork oil per rod:

SAE 5W

Engine oil w/o filter:

20W-60 VOLLSYNTH.

Engine oil with filter:

2,1 LITER

Brake fluid:

DOT 5.1

Fuel:

11,2 LITER

Coolant:

1,0 LITER

Spare parts and accessories for
KTM 640 LC4 ENDURO

Products	Order no.	Price in €	Catalogue

BRAKE BLEEDING SKREW

Bleed brake and clutch
systems quickly, cleanly
and safely!

Bike information:
brake front + back

Rating : 4.18 out of 5

10002856

instead of €19.29

€14.24

p. 708
To the product
TELL-TALE LIGHT

Various turn signal bulbs
with glass base W2x4.6d
or W2,1x9.5d

Bike information:
NUMBER PLATE LIGHT

Rating : 1 out of 5

10031032

€0.83

p. 607
To the product
MOTOREX KTM RACING 4T,1L

Fully synthetic, 4T
KTM CUSTOMER RACING
Fur KTM racing engines

10036547

€25.20

p. 0
To the product
VEHICLE EURO SOCKET

For 12 V devices with
cigarette lighter plug,
incl. fittings

Rating : 4.31 out of 5

10032919

€10.92

p. 0
To the product

NGK SPARK PLUG SOCKET

With integrated 5 kOhm
suppression resistor

Rating : 3.42 out of 5

10035300

€5.87

p. 695
To the product
SPECIAL OIL FILTER WRENCH

Wrenches for all
standard oil filters
and vehicle models!

Bike information:
WITH 10050428

Rating : 2.54 out of 5

10003451

€6.71

p. 650
To the product
SMALL GLOBE BULB

Small globe bulb
12 V, 10 W, BA15s

Bike information:
indicator bulb

10031009

€1.67

p. 607
To the product
H1 HEADLIGHT BULB 12V 55W

Approx. 50% more light
output! StVZO
approved

10031058

€6.71

p. 607
To the product

DOUBLE FILAMENT BULB

Double-filament bulb
6 V, 21/5 W, BAY15d or
12 V, 21/5 W, BAY15d

Bike information:
REAR LIGHT/STOP LIGHT

Rating : 5 out of 5

10031016

€1.67

p. 607
To the product
DELO BATTERY MF

AGM batteries prefilled
with acid and sealed!
Ad. Euro 7.50 refund!

Rating : 3.75 out of 5

10036370

instead of €84.03

€67.22

p. 0
To the product
DELO GEL BATTERY

Gel technology.
A powerful alternative!
Plus EUR7.50 deposit

Rating : 2.18 out of 5

10036170

instead of €100.83

€80.66

p. 0
To the product
JMT LITHIUM ION BATTERY

Long life
Lightweight
plus EUR7.50 deposit.

Rating : 4.22 out of 5

10036930

€113.36

p. 0
To the product

BREMBO BRAKE-DISCS

OEM brake discs
with type approval
Fixed brake discs

Bike information:
REAR

Rating : 3.5 out of 5

10043400

€58.82

p. 0
To the product
BREMBO BRAKE-PADS SINTER

High-performance sintered
brake pads from the world
leader type approved

Bike information:
REAR

Rating : 4.27 out of 5

10047600

€31.92

p. 0
To the product
BREMBO BRAKEPADS ORGANIC

High-performance organic
brake pads from the world
leader type approved

Bike information:
FRONT; REAR

Rating : 4.37 out of 5

10047650

€23.52

p. 0
To the product
Best in test

TRW BRAKE-PADS ORGAN.

Brake pads specifically
for scooters and Offroad
With type approval

Bike information:
FRONT

Rating : 5 out of 5

10045170

€16.80

p. 0
To the product

Best in test

TRW BRAKE-PADS SINTER

Sintered metal pads
Test winners from Lucas
the major German brand

Bike information:
FRONT; REAR

Rating : 3.78 out of 5

10044701

€25.20

p. 0
To the product
Best in test

TRW BRAKEPADS ORGANIC

Organic brake pads from
Germany's major equip-
ment supplier TRW/Lucas

Bike information:
FRONT; REAR

Rating : 4.06 out of 5

10044100

€25.20

p. 0
To the product
CHAMPION OIL FILTER

CHAMPION quality oil
filters from one of the
top brand manufacturers

Bike information:
WITH 10050428; WITH 10050426

Rating : 4.11 out of 5

100506

from €6.71

p. 0
To the product
SPARK PLUG NGK

Top-quality spark plugs
OEM for most of the
big-name manufacturers

Rating : 3.96 out of 5

10035000

€7.55

p. 0
To the product

SPARK PLUG NGK IRIDIUM

High-tech spark plugs
Double the service life
Reduced fuel consumption

Rating : 4.2 out of 5

10035100

instead of €14.75

€14.28

p. 0
To the product
BUCHELI REPAIR MANUALS

Ducati, Moto Guzzi,
Piaggio,Triumph, KTM
and Harley Davidson!

Rating : 4.25 out of 5

10052214

€32.62

p. 0
To the product
ENDURO REPAIR MANUAL

Important information for
all enduro, motocross &
supermoto bikers. 176 p

10053184

€32.62

p. 0
To the product
TRW HEIGHT REDUCER

For many models
With type approval
Made in Germany

Rating : 4.4 out of 5

10026230

€84.03

p. 0
To the product

TRW JACK-UP KITS

Improves riding agility
With type approval
Made in Germany

Rating : 4.38 out of 5

10026300

€75.62

p. 0
To the product
Best in test

RR OIL-TEMPERATURE GAUGE

So that you always know
when the operating temp.
has been reached

Rating : 3.42 out of 5

10034127

€63.02

p. 0
To the product
Sale %

T&T oil temperature gauge

So that you always know
when the operating temp.
has been reached

Rating : 3.28 out of 5

10035370

instead of €25.20

€12.60

p. 0
To the product
SW-MOTECH ALUMINUM

With side protection
Extremely robust
Absolute precision fit

Bike information:
FOR E-START 94-

Rating : 4.33 out of 5

10023450

€83.99

p. 0
To the product

H+B LUGGAGE CARRIER

Hepco & Becker steel-
tubular luggage rack for
cases and bags

Rating : 4.08 out of 5

10024933

€125.20

p. 0
To the product
H+B SIDECASE CARRIER

Hepco & Becker steel-
tubular side-case carrier
without top-case

Rating : 3.53 out of 5

10024924

€291.59

p. 0
To the product
SW MOTECH KTM LC 4 ADVEN.

Perfect fit!
Made in Germany!
High-quality workmanship!

10025902

€67.18

p. 0
To the product
