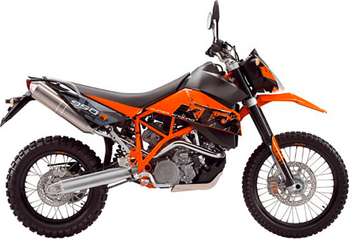

Spare parts and accessories for KTM 950 SUPER ENDURO R 950SUPENDU

2006 - 2009

Specifications*

Engine size:

942

Cylinders:

hp/kW:

98/72

Vehicle weight (kg):

203

Seat height (mm):

920

Valve clearance (intake):

KALT 0,10-0,15 MM

Valve clearance (exhaust):

KALT 0,25-0,30 MM

Engine idle speed:

1400 U/MIN

Carburettor air screw:

2 1/4 AUSDREHUNGEN

Tyre pressure (front):

2,4 BAR

Tyre pressure (rear):

2,5 (2,7) BAR

Spark plug 1:

NGK CR8EK

Spark plug 2:

NGK CR8EIX

Electrode gap:

0,7 MM

Fork tube diam.:

48 MM

Front/rear sprockets:

17/42 ZÄHNE

Chain/Final drive:

5/8 X 5/16" X-RING

Specifications*

Engine size:

942

Cylinders:

hp/kW:

98/72

Vehicle weight (kg):

203

Seat height (mm):

920

Valve clearance (intake):

KALT 0,10-0,15 MM

Valve clearance (exhaust):

KALT 0,25-0,30 MM

Engine idle speed:

1400 U/MIN

Carburettor air screw:

2 1/4 AUSDREHUNGEN

Tyre pressure (front):

2,4 BAR

Tyre pressure (rear):

2,5 (2,7) BAR

Spark plug 1:

NGK CR8EK

Spark plug 2:

NGK CR8EIX

Electrode gap:

0,7 MM

Fork tube diam.:

48 MM

Front/rear sprockets:

17/42 ZÄHNE

Chain/Final drive:

5/8 X 5/16" X-RING

Capacities*

Fork oil per rod:

SAE 5W

Engine oil w/o filter:

SAE 10W-50 VOLLSY.

Engine oil with filter:

3,0L. JASO T903 MA

Brake fluid:

DOT 5.1

Fuel:

14,5 LITER

Coolant:

2,1 LITER

Capacities*

Fork oil per rod:

SAE 5W

Engine oil w/o filter:

SAE 10W-50 VOLLSY.

Engine oil with filter:

3,0L. JASO T903 MA

Brake fluid:

DOT 5.1

Fuel:

14,5 LITER

Coolant:

2,1 LITER

Test reports and information

MOTORRAD 13,15/06 10/09

MOTORRADABENTEUER 4/07

MOTORRAD NEWS 7/06 9/07

ENDUROABENTEUER 3,4/06

MOPPED 10/06 MO 7/06

MOTORRADFAHRER 3/07

Find used value:

DAT GmbH

Test reports and information*

MOTORRAD 13,15/06 10/09

MOTORRADABENTEUER 4/07

MOTORRAD NEWS 7/06 9/07

ENDUROABENTEUER 3,4/06

MOPPED 10/06 MO 7/06

MOTORRADFAHRER 3/07

Find used value:

DAT GmbH

Data or products for your motorcycle missing from the database? Found an error? Please let us know. Go to form

57 articles

Delo

Microfleece battery

€99.99¹ from €97.46¹

Delo

Gel batteries, FA / sealed

€119.99¹ €116.96¹

-25%

Delo

Lithium-Ion Batteries

€129.99¹ €97.49¹

ODYSSEY BATTERY

ODYSSEY Hawker Batteries

€169.99¹ €165.70¹

All Balls Racing

Wheel Bearing Set

€33.99¹ €33.13¹

All Balls Racing

Clutch cylinder repair kit

€42.99¹ €41.90¹

-25%

TRW

Brake Discs, Rear

€99.95¹ €73.99¹

-25%

TRW

Racing Brake Discs Front

€219.95¹ €163.99¹

-23%

Brembo

Brake-Pads Sinter With ABE

€39.99¹ from €30.60¹

Brembo

Brakepads Organic

€29.99¹ €29.23¹

-29%

TRW

Brake-Pads Organic

€19.95¹ €13.99¹

-27%

TRW

Brake-Pads Sinter with ABE

€39.95¹ €28.99¹

-26%

TRW

Brakepads Organic

€33.95¹ €24.99¹

-20%

DID

Chain-Kit

€189.99¹ €151.99¹

All Balls Racing

FORK SEAL SET

€29.99¹ €29.23¹

-19%

TRW

Friction Plates Sets

€129.95¹ €103.99¹

-22%

K&N

High-Flow Airfilter

€119.99¹ €93.57¹

Champion

Oil Filter

€9.99¹ €9.73¹

K&N

Oil filter

€12.99¹ €12.66¹

NGK

Spark Plug

€11.99¹ €11.68¹

-27%

NGK

Iridium Spark Plug

€17.99¹ €12.99¹

TRW

Brake Fluid

€6.99¹ €6.81¹

(100 ml = €2.72¹)

Castrol

Coolant

€9.99¹ €9.73¹

Motul

Motocool Expert

€7.99¹ €7.78¹

PROCYCLE

Coolant

€5.99¹ €5.83¹

(1 l = €5.83¹)

PROCYCLE

Radiator Anti Freeze

€6.99¹ €6.81¹

Castrol

Power1 Racing 10W-50

€14.99¹ from €14.61¹

-17%

Motul

300V 4T Engine Oil SAE 15W-50, 1 Liter

€19.99¹ €16.47¹

-6%

Motul

300V 4T Engine Oil SAE 15W-50, 4 Liter

€69.99¹ €65.21¹

(1 l = €16.30¹)

Motul

7100 4T Engine Oil SAE 10W-50, 4 Liter

€49.99¹ €48.72¹

(1 l = €12.18¹)

-9%

Motul

7100 4T Engine Oil SAE 10W-50, 1 Liter

€14.99¹ €13.63¹

PROCYCLE

Engine Oil 4T SAE 10W-50, 1 Litre

€12.99¹ €12.66¹

PROCYCLE

Engine Oil 4T SAE 10W-50, 4 Litre

€34.99¹ €34.10¹

(1 l = €8.53¹)

Castrol

Fork Oil

€9.99¹ €9.73¹

(1 l = €19.46¹)

-12%

Motul

Expert Fork Oil Technosynthese

€14.99¹ €13.15¹

Motul

Factory Line Fork Oil

€17.99¹ €17.44¹

Wilbers

Fork oil zero friction SAE 5W up to 20W

€25.00¹ €24.36¹

stahlbus

Brake Bleeding Skrew

€24.95¹ from €24.32¹

stahlbus

Bleeder Valve

€34.95¹ €34.06¹

SW-Motech

Hand Protectors

€140.00¹ €136.47¹

SW-Motech

Hand Guards

€140.00¹ €136.47¹

Athena

Exhaust Gasket Muffler

€9.99¹ €9.73¹

-24%

MIVV

Storm GP Exhausts

€579.00¹ €438.64¹

NEW!

RAXIMO

BCF brake and clutch lever

€119.00¹ €116.00¹

Throttle Cable in Original Lenght

€26.99¹ €26.30¹

Headlight Bulb H4

€4.99¹ €4.86¹

Range Power Blue Headlight Bulb

€9.99¹ €9.73¹

Headlight Bulb H4 12V 60/55W

€9.99¹ €9.73¹

Tip

Tips for DIY mechanics

We've compiled an extensive list of DIY tips for you, which will help you to do the most important service work yourself.
Find out more >

Find out more

* Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.

Specifications, spare parts and accessories for KTM 950 SUPER ENDURO R (950SUPENDU)

Are you planning to maintain and service your own KTM 950 SUPER ENDURO R (950SUPENDU)? If so, Louis will provide you with all the information you need. What type of engine oil and which brake fluid should you use? Which are the right spark plugs? What are the correct tyre pressures and valve clearances? We give you the answers to all the important questions about your motorcycle. In addition, we offer a carefully compiled list of all the wearing parts, add-ons and accessories available in our range specifically for your KTM 950 SUPER ENDURO R (950SUPENDU). So we are a one-stop shop where you can get all the information you need and the right product quickly and easily.
