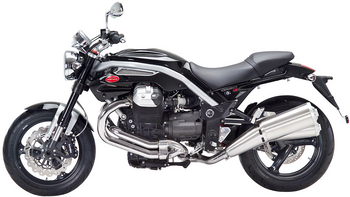

MOTO GUZZI GRISO 8V-1200
GRISO8V

Year of manufacture:

2007 to 2016

Specifications*:

Engine size:

1151

Cylinders:

hp/kW:

110/ 81

Vehicle weight (kg):

244

Seat height (mm):

800

Valve clearance (intake):

KALT 0,10 MM

Valve clearance (exhaust):

KALT 0,15 MM

Engine idle speed:

1100 ± 100 U/MIN

Carburettor air screw:

EINSPRITZUNG 50 MM

Tyre pressure (front):

2,3 BAR

Tyre pressure (rear):

2,5 BAR

Spark plug 1:

NGK CR8EKB

Electrode gap:

0,7 MM

Fork tube diam.:

43 MM USD-GABEL

Chain/Final drive:

KARDAN

Capacities*:

Fork oil per rod:

SAE 7,5W

Engine oil w/o filter:

SAE 10W-60

Engine oil with filter:

3,5 LITER

Gear oil:

500 ML SAE 80W-90

Brake fluid:

DOT 4

Final drive oil:

308 ML SAE 80W-90

Fuel:

16,4 LITER

Coolant:

LUFT/ÖL

Test reports and information*:

Spare parts and accessories for
MOTO GUZZI GRISO 8V-1200

Products	Order no.	Price in €	Catalogue

CASTROL BRAKE FLUID

High performance for
motorcycles and scooters
Exceeds DOT3 and DOT4

Rating : 5 out of 5

10038221

from €8.40

p. 729
To the product
QUICK-LOCK GPS-BRACKET

Model-specific, vibra-
tion-dampened, quick-
release sat nav holder

Rating : 3.66 out of 5

10004501

instead of €50.38

€41.97

p. 0
To the product
SPECIAL OIL FILTER WRENCH

Wrenches for all
standard oil filters
and vehicle models!

Rating : 2.54 out of 5

10003451

€10.92

p. 650
To the product
MOTOREX RACING FORK OIL

Optimised suspension
Improved cornering
and handling

10036550

€15.12

p. 0
To the product

HEADLIGHT BULB H4

Halogen headlight bulb
H4 12 V 60/55 W
P43t

10031028

€4.19

p. 607
To the product
CASTROL TRANSMISSION OIL

Top wear protection
Mineral
Market leader quality

Rating : 5 out of 5

10038257

€5.87

p. 729
To the product
Best in test

PHILIPS VISION MOTO H4

30% more light!
H4 12 V 60/55 W
P43t.

Rating : 5 out of 5

10031114

€6.71

p. 606
To the product
PROCYCLE BRAKE FLUID

Top braking performance
Long-term reliability
Protects braking system

Rating : 4.07 out of 5

10038240

€8.40

p. 738
To the product

MOTOREX HYPOID GEAR OIL

Fully synthetic
SAE 80W/90 special oil
Extreme shear strength

10036554

€15.12

p. 0
To the product
SMALL GLOBE BULB

Small globe bulb
12 V, 5 W, BA15s

Bike information:
PARKING LIGHT

10031008

€1.67

p. 607
To the product
TRW BRAKE FLUID DOT 4

Brake fluid in DOT 4
Also for bikes with ABS
Contains: 250ml.

Rating : 5 out of 5

10038232

€4.19

p. 705
To the product
HEADLIGHT BULB H4 12V 60/

Looks like a xenon lamp
H4 12 V 60/55 W
P43t

Rating : 3.6 out of 5

10031060

€8.40

p. 607
To the product

SMALL GLOBE BULB

Small globe bulb
12 V, 10 W, BA15s

Bike information:
indicator bulb

10031009

€1.67

p. 607
To the product
HEADLIGHT BULB H4 12V 60/

50% more light!
H4 12 V 60/55 W
P43t

Rating : 2.83 out of 5

10031064

€8.40

p. 607
To the product
DELO BATTERY MF

AGM batteries delivered
dry, incl. acid pack!
Ad. Euro 7.50 refund!

Rating : 1.22 out of 5

10036350

instead of €126.04

€100.83

p. 0
To the product
JMT LITHIUM ION BATTERY

Long life
Lightweight
plus EUR7.50 deposit.

Rating : 4.17 out of 5

10036930

€184.79

p. 0
To the product

BREMBO BRAKE-DISCS

OEM brake discs
with type approval
floating discs

Rating : 3.5 out of 5

10043413

€218.48

p. 0
To the product
Best in test

TRW BRAKE-DISC FRONT

Brake discs from the
Supersport World Cham-
pionship, type approved

Rating : 4.21 out of 5

10043600

€184.87

p. 0
To the product
TRW BRAKE-DISCS *RACING

TRW/LUCAS *RACING* front
brake disc. The finest of
high-tech - type approved

Rating : 4.09 out of 5

10043755

€201.67

p. 0
To the product
BREMBO BRAKEPADS ORGANIC

High-performance organic
brake pads from the world
leader type approved

Bike information:
REAR

Rating : 4.37 out of 5

10047650

€23.52

p. 0
To the product

Best in test

TRW BRAKE-PADS ORGAN.

Brake pads specifically
for scooters and Offroad
With type approval

Bike information:
REAR

Rating : 5 out of 5

10045170

€16.80

p. 0
To the product
Best in test

TRW BRAKE-PADS SINTER

Sintered metal pads
Test winners from Lucas
the major German brand

Bike information:
REAR; ENLOSED 4 PCS.

Rating : 3.78 out of 5

10044701

from €31.89

p. 0
To the product
Best in test

TRW BRAKEPADS ORGANIC

Organic brake pads from
Germany's major equip-
ment supplier TRW/Lucas

Bike information:
REAR

Rating : 4.04 out of 5

10044100

€25.20

p. 0
To the product
SPRINT RACING-AIRFILTERS

Higher engine power
through polyester fabric
Operative life 125,000 km

Rating : 3.73 out of 5

10050500

€67.22

p. 0
To the product

CHAMPION OIL FILTER

CHAMPION quality oil
filters from one of the
top brand manufacturers

Rating : 4.11 out of 5

100506

€8.40

p. 0
To the product
SPARK PLUG NGK

Top-quality spark plugs
OEM for most of the
big-name manufacturers

Rating : 3.96 out of 5

10035000

€10.92

p. 0
To the product
EXHAUST GASKET MUFFLER

Easy to change
High quality
Low-cost replacement

Rating : 3.72 out of 5

10042960

€16.80

p. 716
To the product
MIVV OVAL TITANIUM

The Italian
interpretation of the
oval rear silencer design

Rating : 4.28 out of 5

60404000

instead of €410.92

€302.51

p. 0
To the product

BRAKE LEVER

Inexpensive replacement
Accurate fit.
Made of aluminium

Rating : 5 out of 5

10019260

€25.20

p. 0
To the product
HEPCO & BECKER ENGINE

Perfect styling
Extremely high quality
Made in Germany

Rating : 3.9 out of 5

10023300

€168.06

p. 0
To the product
H+B SIDECASE CARRIER

Hepco & Becker steel-
tubular side-case carrier
without top-case

Rating : 3.53 out of 5

10024924

€201.67

p. 0
To the product
QUICK-LOCK TANKRING EVO

Practical, innovative
and easy to use
Available for many bikes

Rating : 4.23 out of 5

10065050

€50.38

p. 0
To the product

C-BOW SADDLEBAG HOLDER

Hepco & Becker
For soft textile luggage
Elegant design

Rating : 3.55 out of 5

10066300

€136.97

p. 0
To the product
