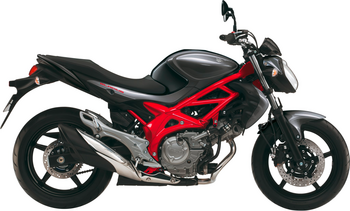

SUZUKI GLADIUS SFV 650 / ABS
WVCX

Year of manufacture:

2009 to 2015

VIN:

JS1CX111100100001 -

Specifications*:

Engine size:

645

Cylinders:

hp/kW:

72/53, 34/25, 48/35

Vehicle weight (kg):

206

Seat height (mm):

790

Valve clearance (intake):

KALT 0,10-0,20 MM

Valve clearance (exhaust):

KALT 0,20-0,30 MM

Engine idle speed:

1300 ± 100 U/MIN

Carburettor air screw:

EINSPRITZUNG 39 MM

Tyre pressure (front):

2,25 BAR

Tyre pressure (rear):

2,5 BAR

Spark plug 1:

NGK CR8EIA-9

Electrode gap:

0,9 MM

Fork tube diam.:

41 MM TELEGABEL

Front/rear sprockets:

15/46 ZäHNE

Chain/Final drive:

112 GLIEDER

Capacities*:

Fork oil per rod:

517 ML SAE 5W-20

Engine oil w/o filter:

2,4 L SAE 10W-40

Engine oil with filter:

2,75 L MIN. API SF

Brake fluid:

DOT 4

Fuel:

14,5 LITER

Coolant:

1,85 LITER

Test reports and information*:

Spare parts and accessories for
SUZUKI GLADIUS SFV 650 / ABS

Sale %

DELO microfleece battery

AGM batteries prefilled
with acid and sealed!
Ad. Euro 7.50 refund!

Rating : 1.85 out of 5

instead of €79.99

€59.99

To the product
Sale %

DELO gel batteries, FA / sealed

Gel technology.
A powerful alternative!
Plus EUR7.50 deposit

Rating : 2.27 out of 5

instead of €89.99

€66.99

To the product
Sale %

DELO Lithium-Ion Batteries

Six times longer life
Very high cranking power
Lightweight

Rating : 3.32 out of 5

instead of €129.99

€96.99

To the product
Saito AGM battery,

AGM batteries prefilled
with acid and sealed!
Ad. Euro 7.50 refund!

Rating : 1.85 out of 5

€49.99

To the product

Brembo Brake-Discs Fixed With ABE

OEM brake discs
with type approval
Fixed brake discs

Rating : 3.6 out of 5

€109.99

To the product
Brembo Brake-Discs Floating Disc

OEM brake discs
with type approval
floating discs

Rating : 3.6 out of 5

€199.95

To the product
Sale %

TRW Racing Brake Discs

TRW/LUCAS *RACING* front
brake disc. The finest of
high-tech - type approved

Rating : 4.04 out of 5

instead of €219.99

€164.99

To the product
Sale %

TRW Lucas Racing Brake Disc

TRW *RACING* rear
brake disc. The finest of
high-tech, type approved.

Rating : 4.44 out of 5

instead of €99.99

€74.99

To the product

LSL Brake Hose For Rear Sets

Special brake-hose for
certain LSL
rearsets

€49.95

To the product
Sale %

TRW Brake-Pipe Kit, Rear-Kit

Steel-braided brake lines
for the rear from German
market leaders TRW

Rating : 3.73 out of 5

instead of €119.99

€49.99

To the product
Best in test

Brembo Brake-Pads Sinter With ABE

High-performance sintered
brake pads from the world
leader type approved

Rating : 3.93 out of 5

from €39.99

To the product
Brembo Brakepads Organic

High-performance organic
brake pads from the world
leader type approved

Rating : 4.5 out of 5

€34.99

To the product

Saito Brake-Pads Organic With ABE

Organic brake pads
Exclusive to Louis
Made in the EU

Rating : 4.41 out of 5

€19.99

To the product
Best in test

Saito Brake-Pads Sinter with ABE

Sintered metal pads
Exclusive to Louis
Made in the EU

Rating : 3.41 out of 5

€24.99

To the product
Sale %

Best in test

TRW Brake-Pads Sinter with ABE

Sintered metal pads
Test winners from TRW

Rating : 3.88 out of 5

instead of €39.99

€29.99

To the product
Sale %

Best in test

TRW Brakepads Organic

Organic Brakepads
from the great german
Supplier TRW / Lucas

Rating : 4.05 out of 5

instead of €33.99

€24.99

To the product

Sale %

DID Chain-Kit

CHAIN+PINION+SPROCKET
We sells the original DID
kit.

Rating : 4.04 out of 5

instead of €124.99

€92.99

To the product
Sale %

DID Chains ZVM-X Type

Individual quality chains
in the most popular sizes
Open-ended with link.

Rating : 4.5 out of 5

instead of €116.99

€86.99

To the product
Sale %

DID S&S Chains ZVM-X Type

Chromed and rust-free!
Extremely durable!
rivet link included

instead of €116.99

€86.99

To the product
ENUMA MVXZ2 X-ring chain

Quadra-X-Ring technology
Choice of 9 colours
OEM quality.

Rating : 5 out of 5

€126.99

To the product

ENUMA MVXZ2 X-Ring Chains

Looks fantastic!
Metallic finish
Made in Japan

Rating : 5 out of 5

€131.99

To the product
Front-Fork Retaining

Front-fork retain. rings
Made in Japan.
Stainless-steel.

Rating : 5 out of 5

€4.99

To the product
Sale %

TRW Clutch Steel-Disc

Steel intermediate plates
for the clutch-coupling
quality Made in Germany

Rating : 2.83 out of 5

instead of €39.99

€29.99

To the product
Delo Air Filter

Top quality
from Euro 0,99 !
All popular models

Rating : 4.25 out of 5

€19.99

To the product

Sale %

K&N High-Flow Airfilter

No more changing filters!
Improves performance!
Reduces fuel consumption!

Rating : 4.24 out of 5

instead of €81.97

€60.99

To the product
Sprint Racing Airfilter Polyester Fabric

Higher engine power
through polyester fabric
Operative life 125,000 km

Rating : 3.35 out of 5

€89.99

To the product
Champion Oil Filter

CHAMPION quality oil
filters from one of the
top brand manufacturers

Rating : 4.31 out of 5

€9.99

To the product
Sale %

K&N oil filter for various vehicles

First-rate filter quality
Wrench-Off Filter
Premium performance

Rating : 4.7 out of 5

instead of €14.99

€10.99

To the product

Megnetic Oil Drain Plug

Small price
Big impact!
For many models

Rating : 4.04 out of 5

€4.99

To the product
Best in test

Stahlbus Oil Drain Valve

For safe and
clean oil changing!
In numerous thread sizes!

Rating : 3.9 out of 5

€34.95

To the product
Sale %

NGK Iridium Spark Plug

High-tech spark plugs
Double the service life
Reduced fuel consumption

Rating : 4.28 out of 5

instead of €12.99

€7.49

To the product
