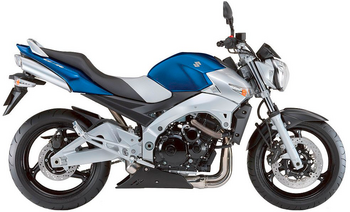

SUZUKI GSR 600
WVB9

Year of manufacture:

2006 to 2011

VIN:

JS1B9111100000001 -

Specifications*:

Engine size:

599

Cylinders:

hp/kW:

98/ 72

Vehicle weight (kg):

208

Seat height (mm):

785

Valve clearance (intake):

KALT 0,10-0,20 MM

Valve clearance (exhaust):

KALT 0,20-0,30 MM

Engine idle speed:

1300 ± 100 U/MIN

Carburettor air screw:

EINSPRITZUNG

Tyre pressure (front):

2,5 BAR

Tyre pressure (rear):

2,5 (2,9) BAR

Spark plug 1:

NGK CR9E

Spark plug 2:

NGK CR9EIX

Electrode gap:

0,7 MM

Fork tube diam.:

43 MM TELEGABEL

Front/rear sprockets:

16/48 ZäHNE

Chain/Final drive:

114 GLIEDER

Capacities*:

Fork oil per rod:

508 ML SUZUKI 10G

Engine oil w/o filter:

3,2 L SAE 10W-40

Engine oil with filter:

3,6 L MIN. API SF

Brake fluid:

DOT 4

Fuel:

16,5 LITER

Coolant:

2,8 LITER

Test reports and information*:

Spare parts and accessories for
SUZUKI GSR 600

Products	Order no.	Price in €	Catalogue

DELO BATTERY MF

AGM batteries delivered
dry, incl. acid pack!
Ad. Euro 7.50 refund!

Rating : 1.27 out of 5

10036350

€59.99

p. 0
To the product
DELO GEL BATTERY

Gel technology.
A powerful alternative!
Plus EUR7.50 deposit

Rating : 2.14 out of 5

10036170

€79.99

p. 0
To the product
JMT LITHIUM ION BATTERY

Long life
Lightweight
plus EUR7.50 deposit.

Rating : 3.96 out of 5

10036930

€94.90

p. 0
To the product
ODYSSEY HAWKER BATTERIES

Batteries with extremely
high starting power!
Plus EUR 7.50 deposit

Rating : 3.66 out of 5

60901500

instead of €189.99

€169.99

p. 0
To the product

SAITO AGM BATTERY

AGM batteries delivered
dry, incl. acid pack!
Ad. Euro 7.50 refund!

Rating : 1.95 out of 5

10036480

€34.99

p. 0
To the product
BREMBO BRAKE-DISCS

OEM brake discs
with type approval
floating discs

Bike information:
FRONT

Rating : 3.5 out of 5

10043413

€229.99

p. 0
To the product
BREMBO BRAKE-DISCS

OEM brake discs
with type approval
Fixed brake discs

Rating : 3.5 out of 5

10043400

€109.99

p. 0
To the product
TRW BRAKE DISCS REAR

Brake discs from the
Supersport World Cham-
pionship, type approved

Bike information:
REAR

Rating : 5 out of 5

10043612

instead of €89.99

€71.99

p. 0
To the product

Best in test

TRW BRAKE-DISC FRONT

Brake discs from the
Supersport World Cham-
pionship, type approved

Bike information:
FRONT

Rating : 4.21 out of 5

10043600

instead of €219.99

€175.99

p. 0
To the product
TRW BRAKE-DISCS *RACING

TRW/LUCAS *RACING* front
brake disc. The finest of
high-tech - type approved

Bike information:
FRONT

Rating : 4 out of 5

10043755

instead of €239.99

€191.99

p. 0
To the product
TRW BRAKE-DISCS *RACING

TRW/LUCAS *RACING* rear
brake disc. The finest of
high-tech, type approved.

Bike information:
REAR

Rating : 4.37 out of 5

10043766

instead of €99.99

€79.99

p. 0
To the product
TRW BRAKE-PIPE KIT, F.

Steel-braided brake lines
for the front from German
market leaders TRW/Lucas

Bike information:
FRONT

Rating : 3.6 out of 5

10045280

from €109.99

p. 0
To the product

TRW BRAKE-PIPE KIT, R.

Steel-braided brake lines
for the rear from German
market leaders TRW/Lucas

Bike information:
REAR

Rating : 3.6 out of 5

10045290

from €49.99

p. 0
To the product
BREMBO BRAKE-PADS SINTER

High-performance sintered
brake pads from the world
leader type approved

Bike information:
FRONT; REAR

Rating : 4.13 out of 5

10047600

€37.99

p. 0
To the product
BREMBO BRAKEPADS ORGANIC

High-performance organic
brake pads from the world
leader type approved

Bike information:
FRONT

Rating : 4.54 out of 5

10047650

€32.99

p. 0
To the product
SAITO BRAKE-PADS ORGANIC

Organic brake pads
Exclusive to Louis
Made in the EU

Bike information:
FRONT

Rating : 4.26 out of 5

10044261

€19.99

p. 0
To the product

Best in test

SAITO BRAKE-PADS SINTER

Sintered metal pads
Exclusive to Louis
Made in the EU

Bike information:
SINTER FRONT; SINTER REAR

Rating : 3.41 out of 5

10044350

€24.99

p. 0
To the product
Best in test

TRW BRAKE-PADS SINTER

Sintered metal pads
Test winners from Lucas
the major German brand

Bike information:
FRONT; REAR

Rating : 3.75 out of 5

10044701

€34.99

p. 0
To the product
Best in test

TRW BRAKEPADS ORGANIC

Organic brake pads from
Germany's major equip-
ment supplier TRW/Lucas

Bike information:
FRONT

Rating : 4.1 out of 5

10044100

€29.99

p. 0
To the product
DID CHAIN-KIT

CHAIN+PINION+SPROCKET
We sells the original DID
kit.

Rating : 3.95 out of 5

10048000

€129.99

p. 0
To the product

DUST COVER SET SAITO

Reliable protection
Available for many bikes
OEM quality

Rating : 4.25 out of 5

10042050

€9.99

p. 717
To the product
FORK SEAL SET SAITO

In various sizes
Made in EU
OEM quality

Rating : 2.88 out of 5

10042180

€9.99

p. 717
To the product
FRONT-FORK RETAINING

Front-fork retain. rings
Made in Japan.
Stainless-steel.

Rating : 5 out of 5

10042164

€4.99

p. 717
To the product
STEERING HEAD BEARING

Quality steering head
bearings. For all popular
motorcycle models

Rating : 3.5 out of 5

10051190

€39.99

p. 716
To the product

TRW CLUTCH-DISC SET

TRW/Lucas clutch discs
Outstanding for their
precision fit

Rating : 4.52 out of 5

10043800

€79.99

p. 0
To the product
CHAMPION AIRFILTER

Hightech filters from
one of the largest
brand manufacturers

Rating : 4.35 out of 5

10052000

€24.99

p. 0
To the product
DELO AIR FILTER

Top quality
from Euro 0,99 !
All popular models

Rating : 4.32 out of 5

100502

€19.99

p. 0
To the product
K&N HIGH-FLOW AIRFILTER

No more changing filters!
Improves performance!
Reduces fuel consumption!

Rating : 4.21 out of 5

10050166

instead of €79.99

€67.99

p. 0
To the product

CHAMPION OIL FILTER

CHAMPION quality oil
filters from one of the
top brand manufacturers

Rating : 4.14 out of 5

100506

€9.99

p. 0
To the product
ALUMINIUM OIL PLUG WASHER

Fit new seals
at every oil change.
Set of 5.

Rating : 4.83 out of 5

10010036

€1.99

p. 709
To the product
COPPER WASHERS FOR

Various sizes
Set of 5

Rating : 3.33 out of 5

10002915

€1.99

p. 709
To the product
MAGNETIC OIL DRAIN PLUG

Small price
Big impact!
For many models

Rating : 4.31 out of 5

10002912

€4.99

p. 709
To the product

Best in test

STAHLBUS OIL DRAIN VALVE

For safe and
clean oil changing!
In numerous thread sizes!

Rating : 3.63 out of 5

10002846

€34.95

p. 709
To the product
SPARK PLUG NGK

Top-quality spark plugs
OEM for most of the
big-name manufacturers

Rating : 4 out of 5

10035000

€9.99

p. 0
To the product
SPARK PLUG NGK IRIDIUM

High-tech spark plugs
Double the service life
Reduced fuel consumption

Rating : 4.22 out of 5

10035100

instead of €16.99

€13.99

p. 0
To the product
SPARK PLUG SET NGK

Top quality spark plugs
Ideal for groups, clubs
and all smart shoppers

Rating : 4 out of 5

10059100

instead of €99.90

€89.90

p. 0
To the product

CASTROL BRAKE FLUID

High performance for
motorcycles and scooters
Exceeds DOT3 and DOT4

Rating : 5 out of 5

10038221

from €9.99

p. 729
To the product
PROCYCLE BRAKE FLUID

Top braking performance
Long-term reliability
Protects braking system

Rating : 4.16 out of 5

10038240

€9.99

p. 738
To the product
TRW BRAKE FLUID DOT 4

Brake fluid in DOT 4
Also for bikes with ABS
Contains: 250ml.

Rating : 5 out of 5

10038232

€4.99

p. 705
To the product
CASTROL COOLANT

Ready to use
For motorcycles/scooters
Market leader quality

Rating : 3.66 out of 5

10038227

€9.99

p. 729
To the product

PROCYCLE COOLANT

For year-round use
Ready-to-use mixture
Frost protection to -37°C

Rating : 5 out of 5

10004894

€6.99

p. 738
To the product
PROCYCLE RADIATOR ANTI

For liquid-cooled engines
Top all-year protection
Nitrite- & phosphate-free

Rating : 4.66 out of 5

10004869

€5.99

p. 738
To the product
Exclusively at Louis

Best in test

CASTROL GRAND-PRIX OIL 4L

Semi-synthetic, 4T
API SG and JASO MA
Louis Special Edition

Rating : 3.98 out of 5

10038255

instead of €39.99

€29.99

p. 727
To the product
Best in test

CASTROL MOTOR OIL 10W-40

HC synthetic, 4T
API SJ, JASO MA-2
With Trizone Technology.

Rating : 4.25 out of 5

10038381

from €16.99

p. 0
To the product

Best in test

PROCYCLE 4-STR. ENG. OIL

Semi-synthetic, 4T
API SM
JASO T 903:2006 MA2

Rating : 4.54 out of 5

10038450

from €8.99

p. 723
To the product
KERN STABI FRONT HEAD

for lifting the front end
5 height settings
sturdy square tubing

10002654

€49.95

p. 623
To the product
KERN-STABI ADAPTER FOR

Universal Adapter for
most motorcycles
with hollow swingarm axle

10009346

€79.00

p. 621
To the product
Best in test

KERN-STABI BASIC-LIFTER

Base for many models
Super-strong and stable
Market leader quality

Rating : 4.55 out of 5

10002650

€79.00

p. 623
To the product
