Spare parts and accessories for KTM 390 DUKE (EURO 4) - 390DU/17

My Bike

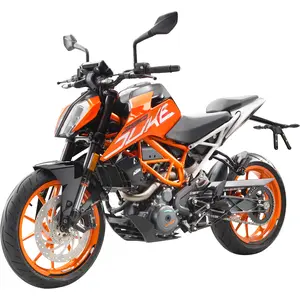

390 DUKE (EURO 4)
2017 - 2020
Find another bike
Specifications *
Cylinders:
1
hp/kW:
44/32
Vehicle weight (kg):
149
Seat height (mm):
830
Valve clearance (intake):
0,08-0,12 MM
Valve clearance (exhaust):
0,13-0,17 MM
Engine idle speed:
1600 ± 50 U/MIN
Carburettor air screw:
EINSPRITZUNG 46 MM
Tyre pressure (front):
2,0 BAR
Tyre pressure (rear):
2,0 (2,2) BAR
Spark plug 1:
NGK LKAR8A-9
Fork tube diam.:
USD-GABEL 43 MM
Front/rear sprockets:
15/45 ZÄHNE
Chain/Final drive:
5/8 X 1/4" X-RING
Capacities *
Fork oil per rod:
440 ML SAE 4W
Engine oil w/o filter:
SAE 15W-50
Engine oil with filter:
1,7 L MIN. API SH
Brake fluid:
DOT 4 / 5.1
Fuel:
13,4 LITER
Coolant:
CA. 1,1 LITER
* We acquire the data with care, but without any guarantee
Louis has taken great care in compiling the specifications and associated products. They apply to the model of the selected vehicle that is sold in Germany. The specifications of models sold in other countries may differ. Louis does not accept any responsibility for the accuracy of the information provided. Prior to installation, you should consult your motorcycle's handbook and/or seek information from the manufacturer.
